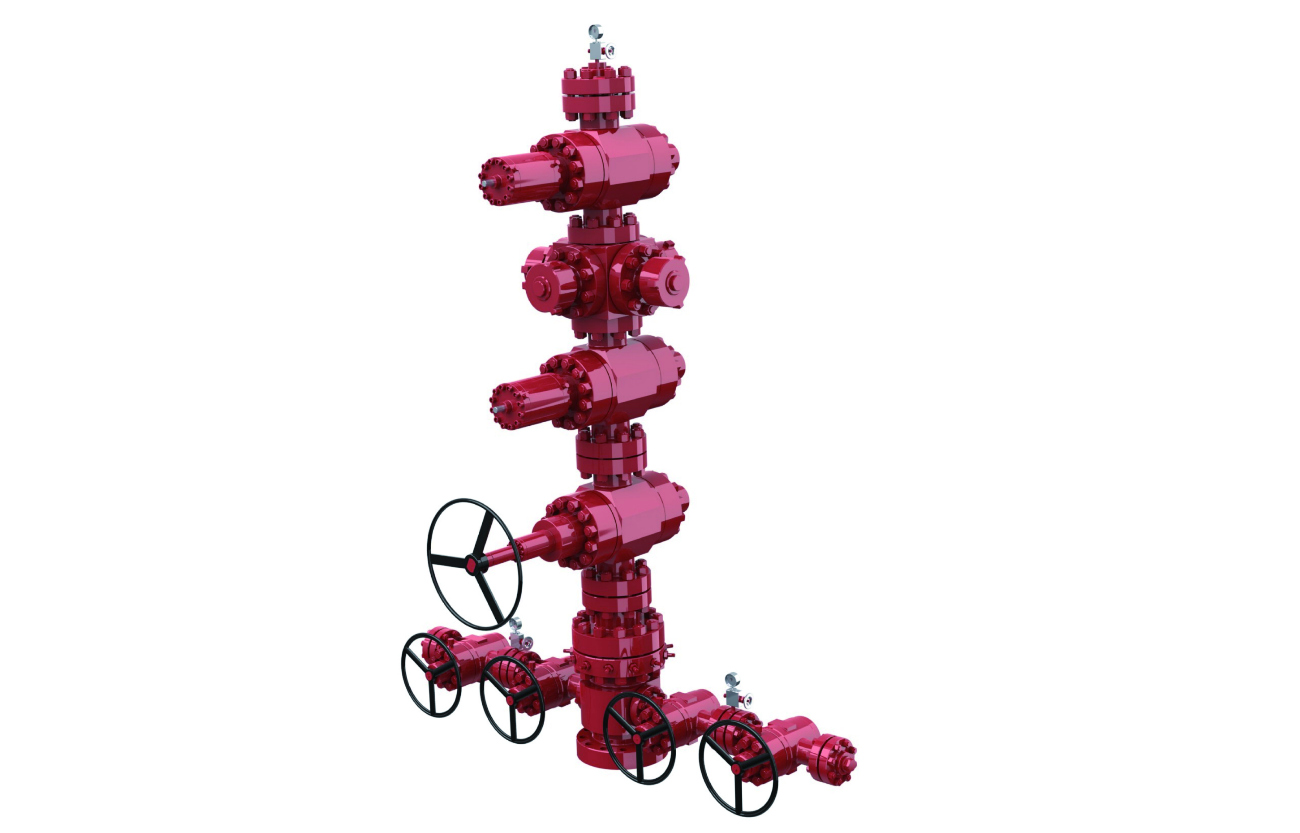

Conventional Wellhead And X mas Tree
Any question about this product, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- API 6A standard flange/clamp connection
- Easy installation and removal
- Reliable sealing performance
- Long service life
- Good appearance
Conventional Wellhead And X mas Tree
As one of conventional oil and gas wellheads and X-mas trees manufacturer, Shengji’s annual production capacity of wellhead and X-mas tree exceeds 5,000 sets. Our advanced testing laboratory guarantees our products’ quality.
The conventional wellhead and X-mas tree equipment has API 6A standard connection, which is easy to install, maintain and is interchangeable.
Shengji designs, manufactures and supplies conventional wellheads and X-mas trees of all sizes, working pressures and temperatures. The sealing performance is reliable and the service life span is long.
Model
Data |
KY 65-21 | KY 65-35 | |
Self-flow wellhead | SRP wellhead | ||
Nominal diameter(in) | 2 9/16 | 2 9/16 | 2 9/16 |
Rated working pressure(psi) | 3000 | 3000 | 5000 |
Applied working temperature | -20℃~80℃ | ||
Connection type | Flange/clamp | Flange/clamp | Flange/clamp |
Connecting casing size(in) | 5 1/2” | 5 1/2” | 5 1/2” |
Dimension(mm) | 1500 x 1190 | 1500 x 1190 | 2268 x 1740 |
