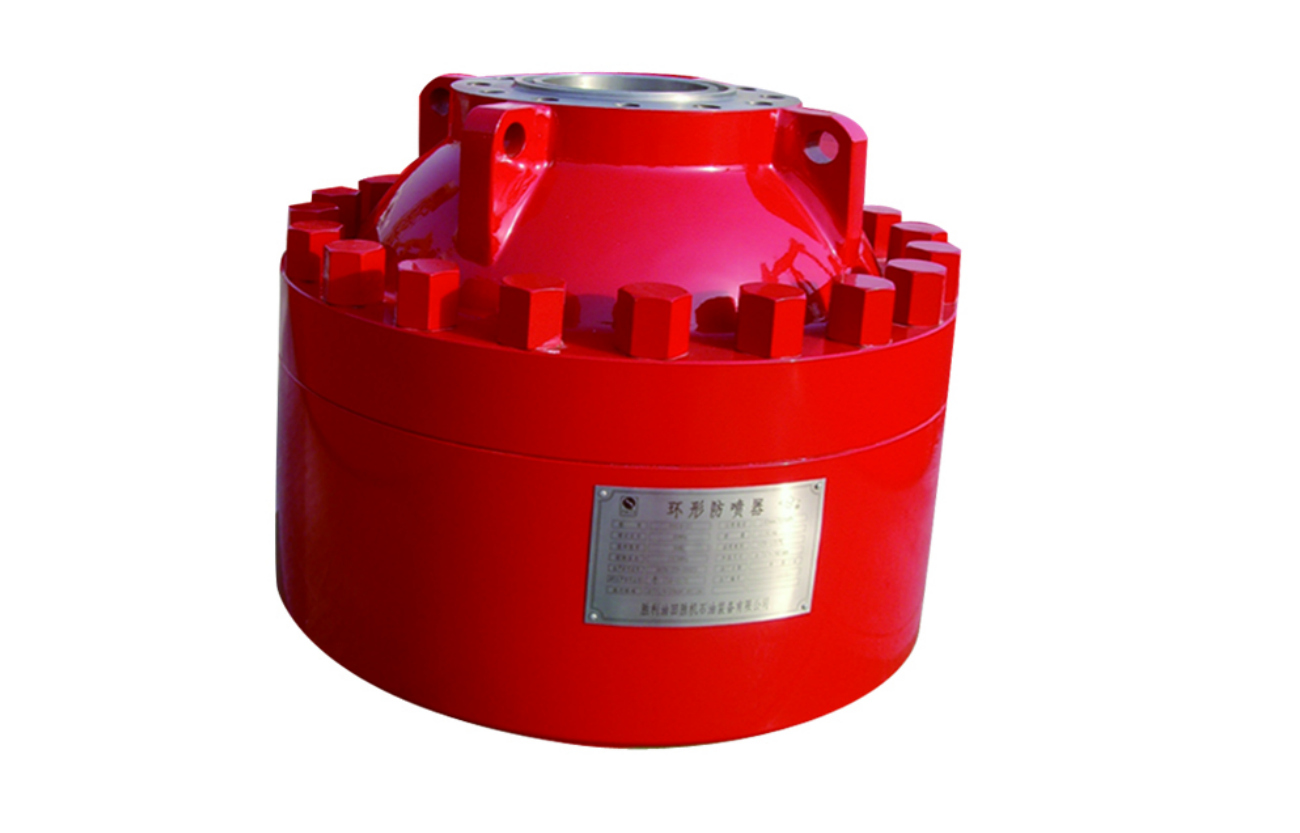

Annular Blowout Preventer
Any question about this product, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- Annular BOP can fully seal the wellhead when there is no string inside thewellbore
- Annular BOP can seal the annulus space of the wellhead when there is a string, wireline and cable inside the
- Snubbing can be performed if the butt welding drill pipe has an 18°bevel
- Equipped withan energy accumulator, and a tubing coupling can pass through the annular BOP under pressure when well pressure is less than 3Mpa
Annular Blowout Preventer

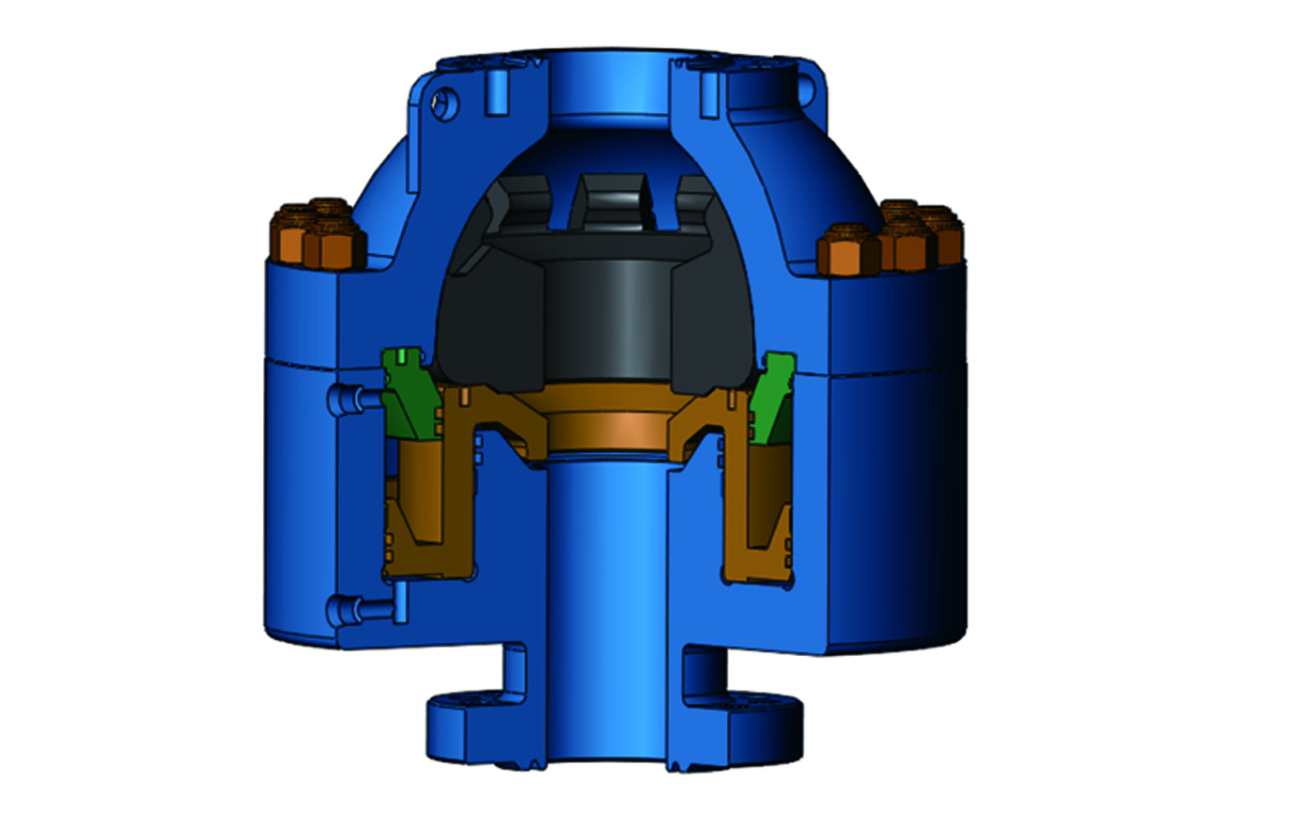

Shengji’s API 16A hydraulic annular BOP can be used in work over and drilling operations equipped with hydraulic control systems. The BOPs are designed and manufactured in full conformity to the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable.
While the annular BOP can be used independently, it normally works with a single or a double BOP.
It can seal the drilling tool or well bore efficiently, preventing oil well blow outs.Its anti H2S performance conforms to the NACE MR 0175 standard.
| Model | FH18-21 | FH18-35 |
| Nominal diameter(in) | 7 1/16 | 7 3/8 |
| Rated working pressure(psi) | 3000 | 5000 |
| Strength pressure test(psi) | 6000 | 7500 |
| Oil cylinder working pressure(psi) | 1200-1500 | 1200~1500 |
| Piston stroke | 100mm | 100mm |
| Metal temperature class | -29~121℃ | -29~121℃ |
| Nonmetal temp. class | -18~121℃ | -18~121℃ |
| Oil cylinder closed chamber volume | 17L | 17L |
| Oil cylinder open chamber volume | 11.6L | 11.6L |
| Bolt quantity and diameter | 12-M30 x 3 x 140 | 12-M36 x 3 x 180 |
| Ring gasket | R45 | R46 |
| Dimension(mm) | 737 x 740 | 737 x 770 |
| Weight(lb) | 2628 | 2690 |
