Rod Rotator
Any question about this product, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- Can be used in sucker rod pump oil production system.
- Working principle: Makesthe sucker rod rotation at a stable speed.
- Effect：Reduces eccentric wearand prolong the service life of the sucker rod and tubing
- Annual output of 5000 pieces

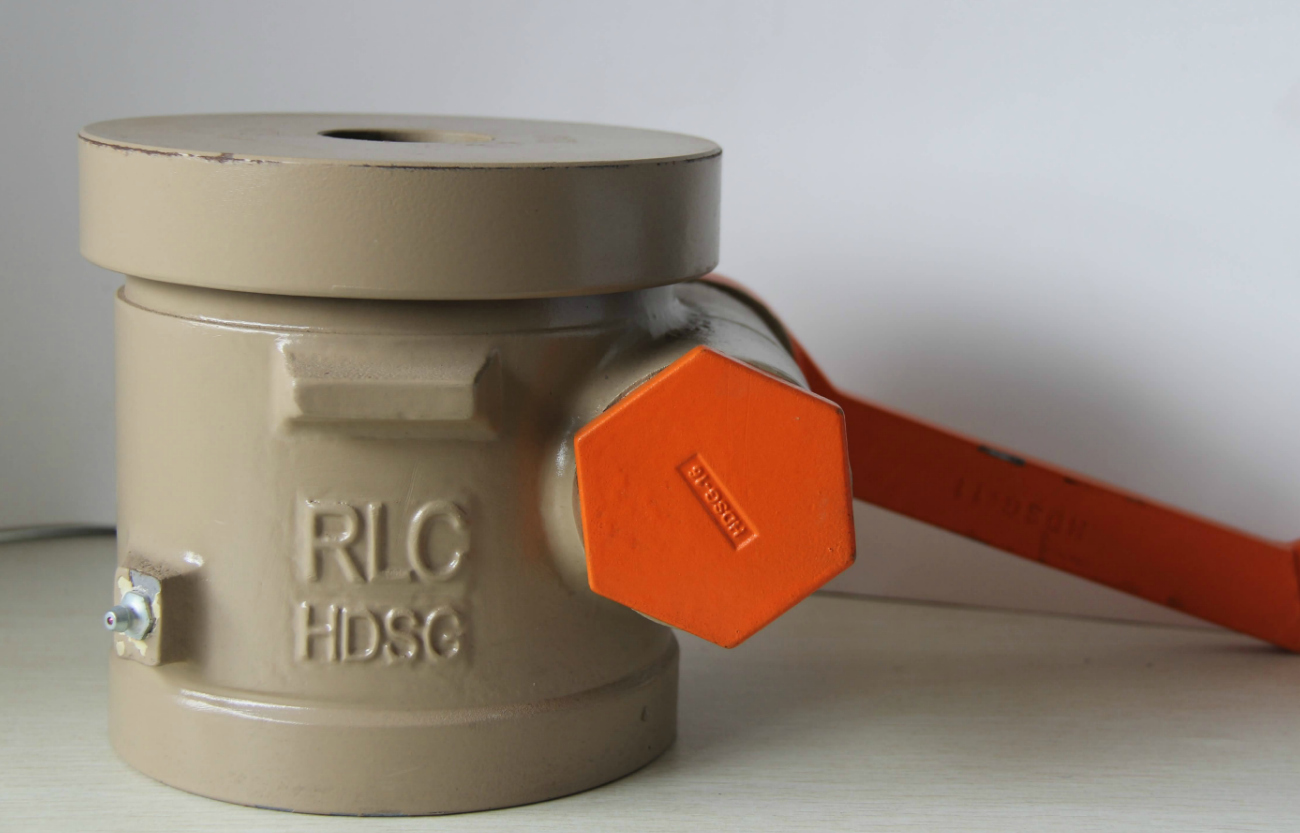

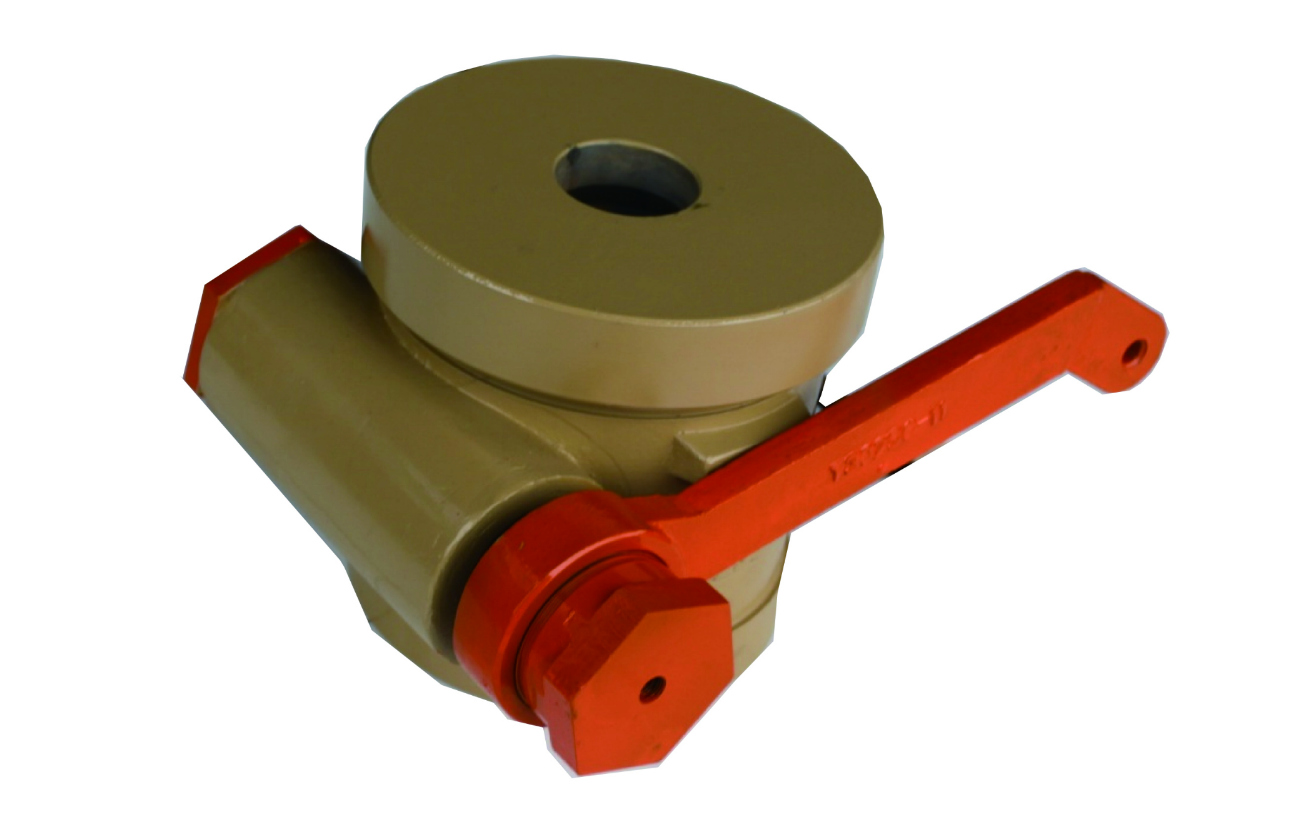

Rod Rotator
In a sucker rod pump oil production system, reciprocating motion of the sucker rod in the tubing causes an intense friction between the sucker rod and the tubing.
This leads to a fracture of the sucker rod and the perforation of the oil pipe. It is more serious in partial deviated wells and horizontal wells. Shengji rod rotator produced by Shengji integral tubing rotator manufacturer can make the sucker rod rotation at a constant speed.

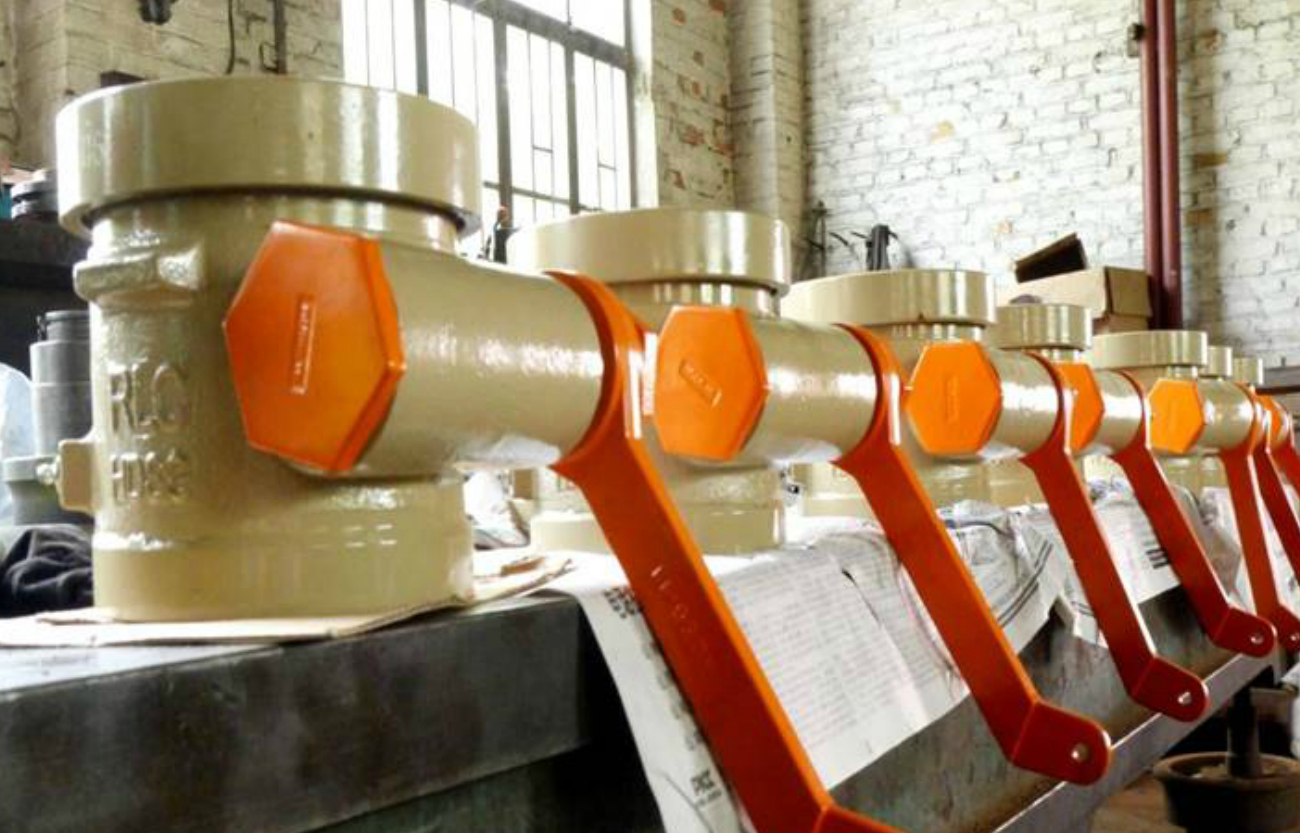

This ensures the sucker rod and tubing wear is distributed in the range of 360 degrees, reducing eccentric wear. A principle that prolongs the service life of the sucker rod and tubing while reducing the production cost. Shengji rod rotator has been sold to major oil fields at home and abroad. Shengji’s annual output is 5000 pieces.
| No. | Model | Rated load (lbf) | Max.polished rod diameter(in) | outside dimension
(mm) |
| 1 | GGX16-38 | 36000 | 1 1/2 | 282.5×215×160 |
| 2 | GGX6-28 | 13500 | 1 1/4 | 282.5×215×142 |
| 3 | GGX6-32 | 13500 | 1 1/8 | 301.2×161.5×111.3 |
