Anti H2S Wellhead And X-mas Tree
Any question about our OCTG casting, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- Safety valve in main drift diameter to achieve wellhead shutdown in emergency
- All pressure bearing parts are made of superior alloy forging Through proper heat treatment and NDT, it has good sulfide proof capability
- Metal to metal seal tubing hanger with a long service life
- Rising stem gate valve with a balance tail stem to prevent the valve being stuck under high pressure
- Side outlets with VR thread allow replacement of gate valve under pressure

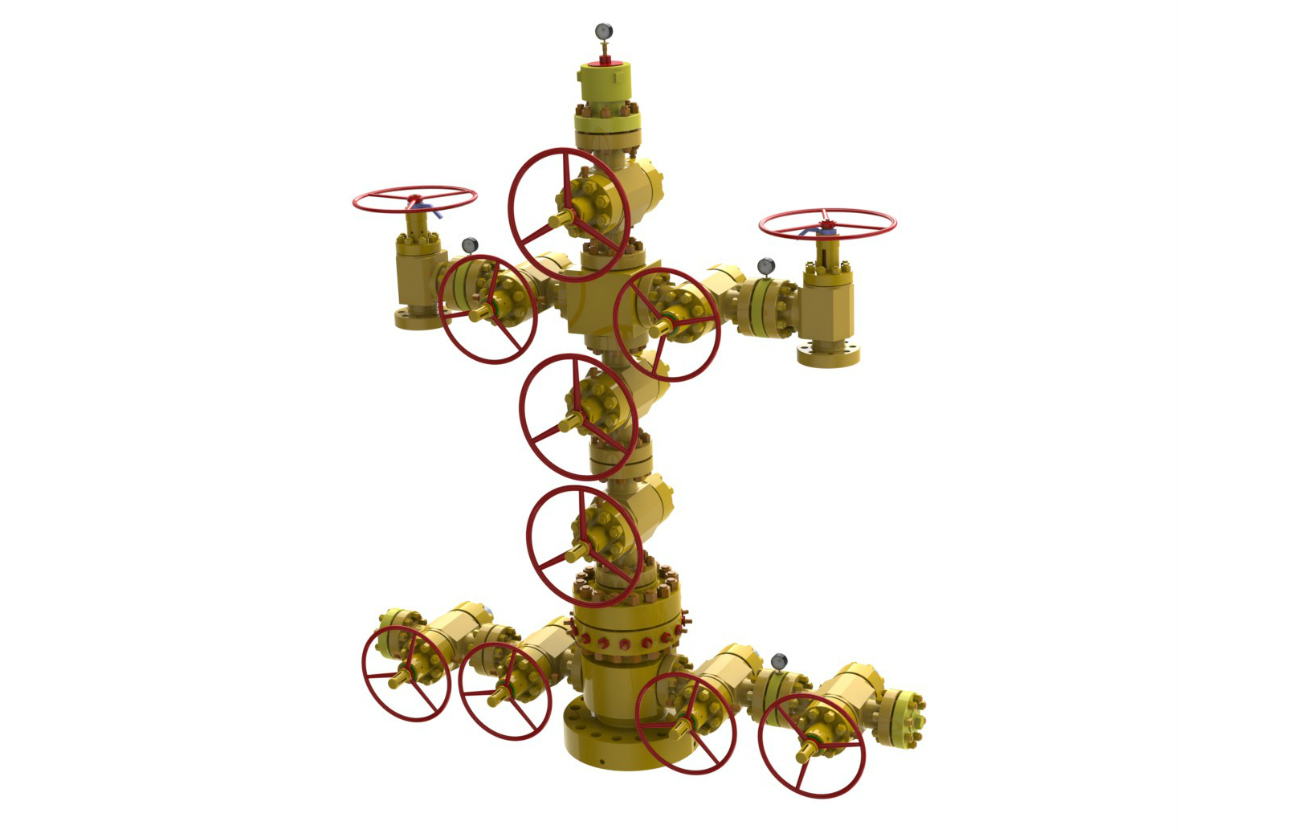

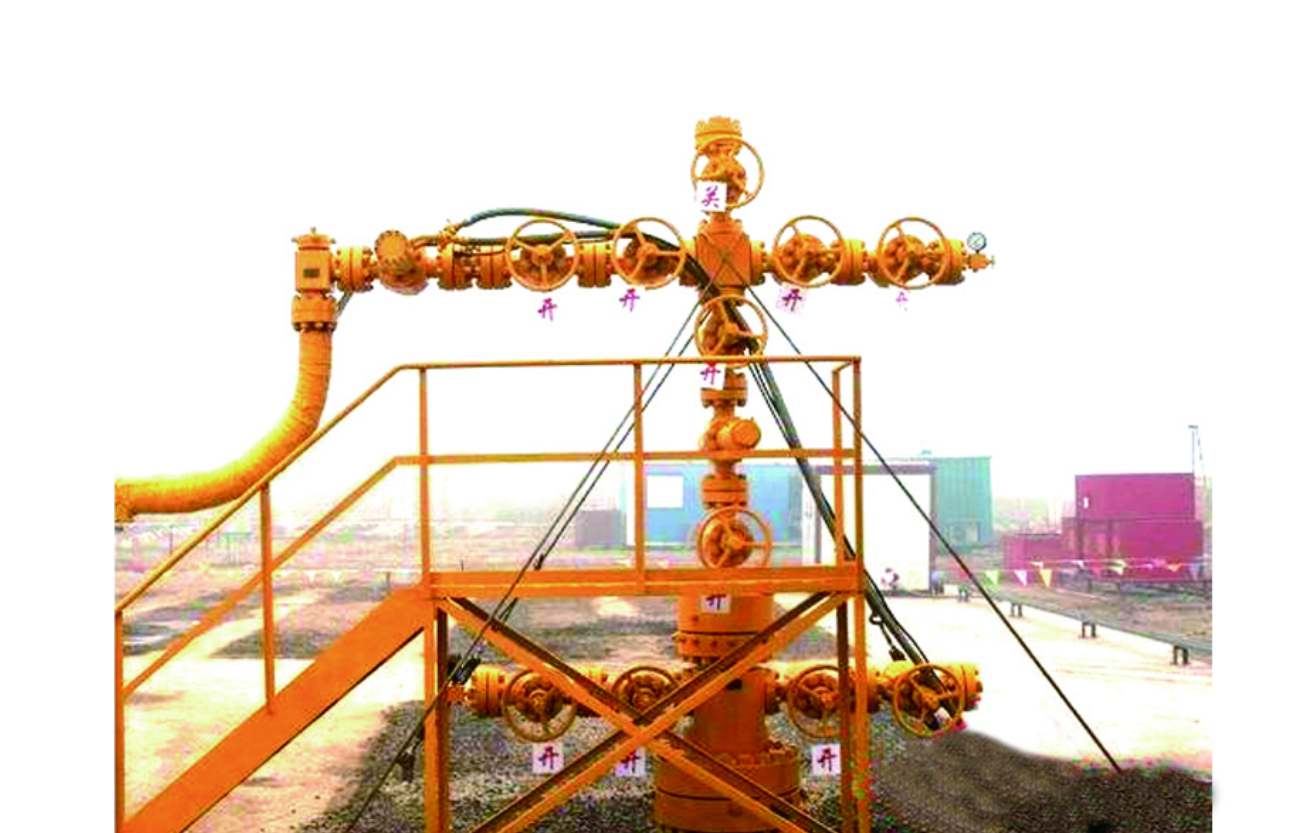

Anti H2S Wellhead And X-mas Tree
H2S is corrosive to most equipment and will detrimentally affect the health of personnel, so, basing it design on the API 6A Wellhead and X-mas tree, Shengji developed an anti-H2S wellhead and X-mas tree for H2S removal.
Its main usage is in deep wells, ultra deep wells, and high pressure oil/gas wells with significant H2S levels. It also may be used in high pressure acidization and fracturing in oil and gas wells.
| Working pressure(psi) | 10000,15000,20000 |
| Working temperature | -46~121℃ |
| Material class | DD, EE, FF |
| Production specification level | PSL2, PSL3, PSL3G, PSL4 |
| Performance rate | PR1 PR2 |
| Drift diameter(in) | 2 9/16, 3 1/8 |
