Drilling BOP
Any question about this product, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- Reasonable structure and easy to operate
- Hydraulically operated, manual operationpossible if hydraulic system unavailable for some reason.
- Standard connection and interchangeablerubber seals
- Reliable sealing performance
- Prompt open/close control
- CompletedBOP rams, including pipe ram, blind ram, shear ram, variable diameter ram.
Drilling BOP

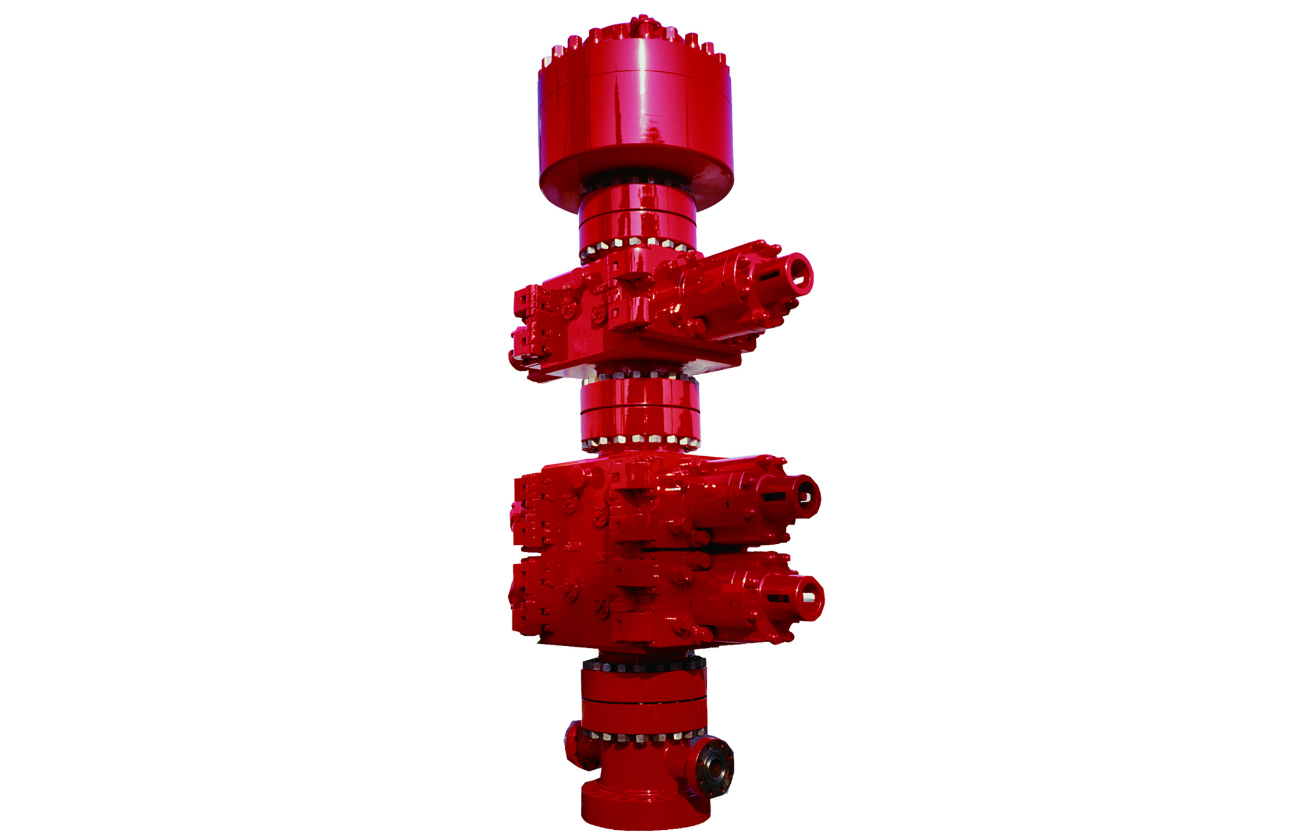

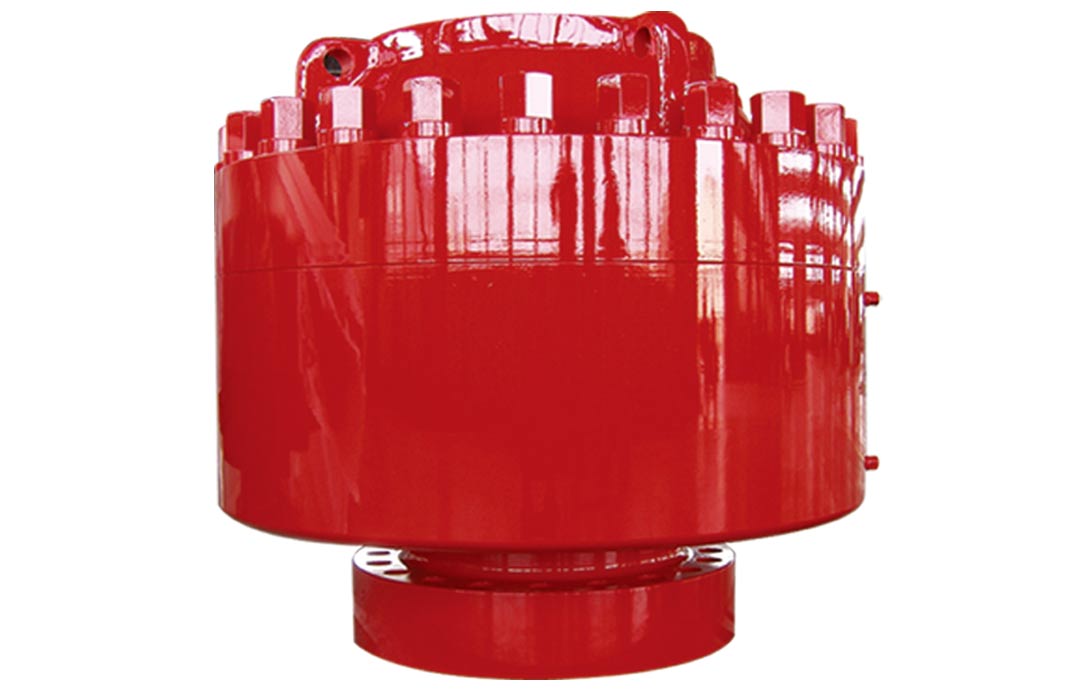

The Shengji drilling BOP includes an annular BOP and a ram BOP. The annular BOP, consisting primarily of a shell, a header, a rubber core and a piston, and which by design is equipped with a hydraulic control system, can be used independently but usually operates in tandem with a ram BOP.
In accordance with API 16A requirements, the connections at the top and bottom of the rig are either flange or studded flange, and can be conveniently connected to a drilling spool or ram BOP.

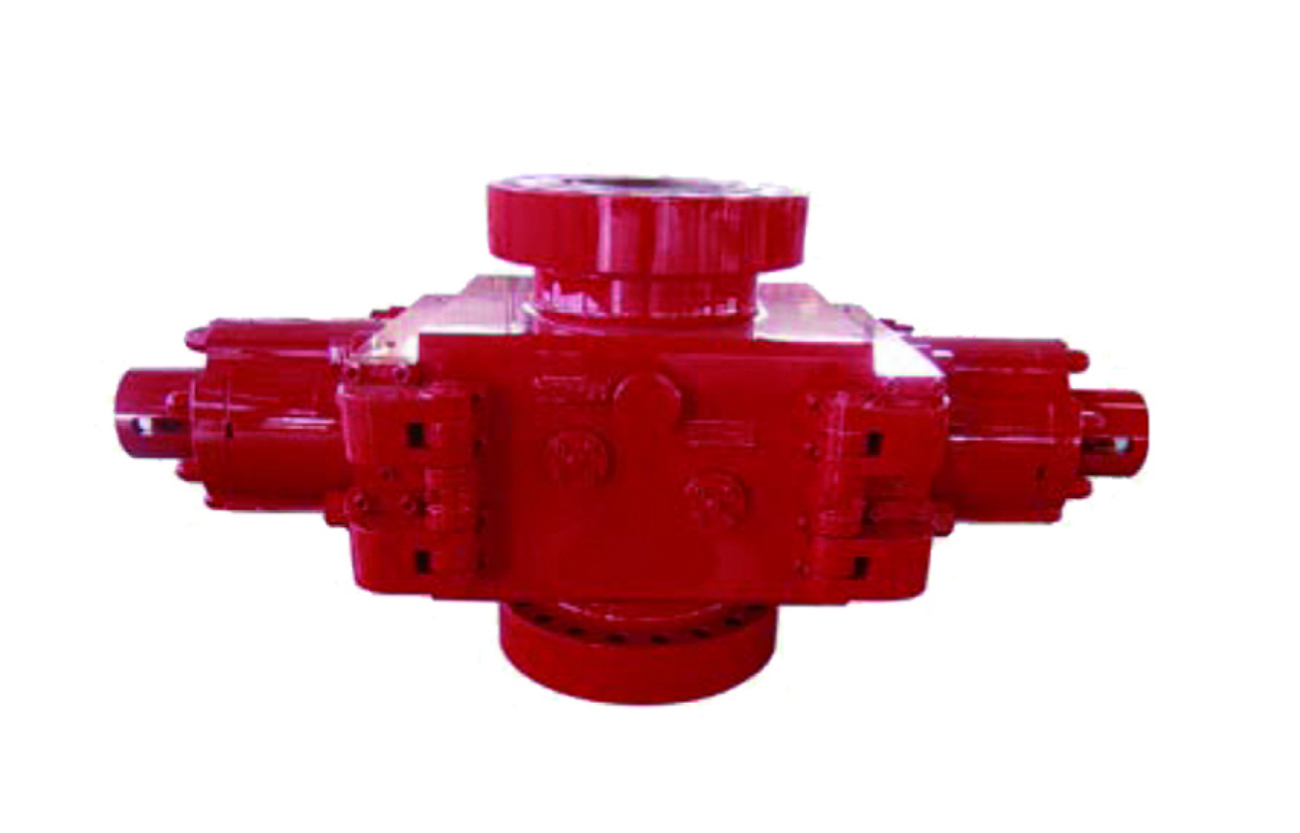

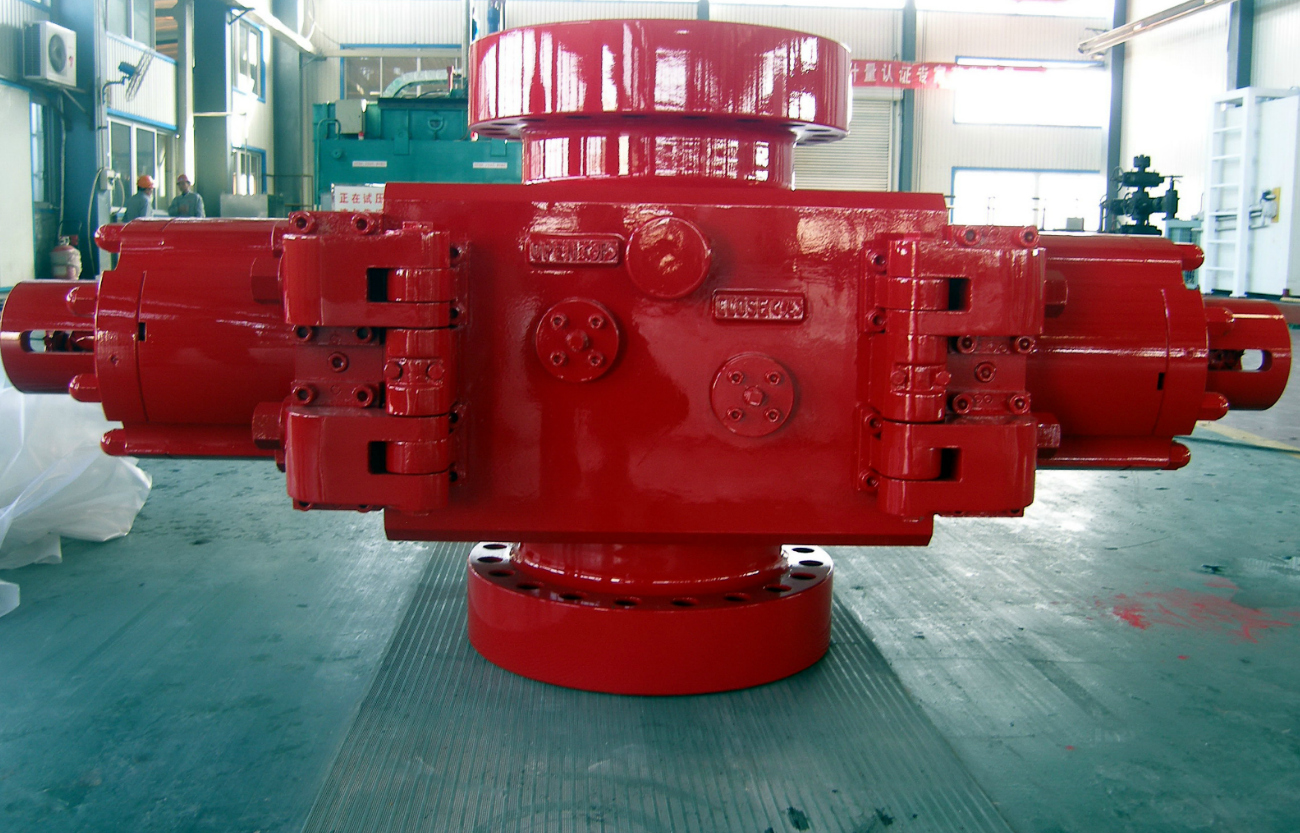

The Shengji ram BOP features an advanced design that is nonetheless easy to operate.
The ram BOP is reliable, and spare parts can be easily replaced. As with the annular BOP, it can be used independently or coupled to other BOP combinations.
A hydraulic system can be used to open and close the ram, but should there be no power or air on site to run this system, the rams can be opened or closed manually.
| Model | FH28-21 | FH35-21 | FH18-35 | FH28-35 | FH35-35A |
| Bore(in) | 11 | 13 5/8 | 7 | 11 | 13 5/8 |
| Rated pressure(psi) | 3000 | 3000 | 5000 | 5000 | 5000 |
| Strength pressure(psi) | 6000 | 6000 | 10000 | 10000 | 10000 |
| Working temperature | -29~121℃ | ||||
| Weight(lb) | 7136 | 11800 | 3200 | 9800 | 14800 |
| Dimension(mm) | 1032×930 | 1245×1090 | 745×788 | 1135×1090 | 1271×1220 |
| Model | FZ28-21 | FZ35-21 | FZ18-35 | FZ28-35 | FZ35-35B | FZ28-70 | FZ35-70 | |
| Bore(in) | 11 | 13 5/8 | 7 | 11 | 13 5/8 | 11 | 13 5/8 | |
| Rated pressure (psi) | 3000 | 3000 | 5000 | 5000 | 5000 | 10000 | 10000 | |
| Strength pressure(psi) | 6000 | 6000 | 10000 | 10000 | 10000 | 15000 | 15000 | |
| Piston diameter (mm) | 170 | 220 | 170 | 220 | 250 | 350 | 350 | |
| Weight(lb) | Single ram | 7200 | 7700 | 2600 | 7500 | 8700 | 10800 | 11600 |
| Double ram | 9800 | 14900 | 5000 | 13600 | 16000 | 21200 | 25300 | |
| Dimension
（mm） |
Single ram | 2907 x 1060 x 840 | 2476 x 1220 x 844 | 1534 x 555 x 727 | 2170 x 1167 x 870 | 2467 x 1220 x 890 | 2360 x 1145 x 1030 | 2690 x 1235 x 1138 |
| Double ram | 2907 x 1060 x 1120 | 2476 x 1220 x 1300 | 1534 x 555 x 1110 | 2170 x 987 x 1415 | 2476 x 1220 x 1386 | 2360 x 1145 x 1600 | 2690 x 1235 x 1726 | |
