Double Ram BOP
Any question about this product, please email sales@sjpec.com. You will get reply within 24 hours!
Key Features
- Double ram BOP seals annular space between tubing and casing or wellbore
- Double ram BOP suspends and stabilizes string
- Double ram BOP with side outlets could be used for choke and blowout
- Double ram BOP can be used in operation under pressure

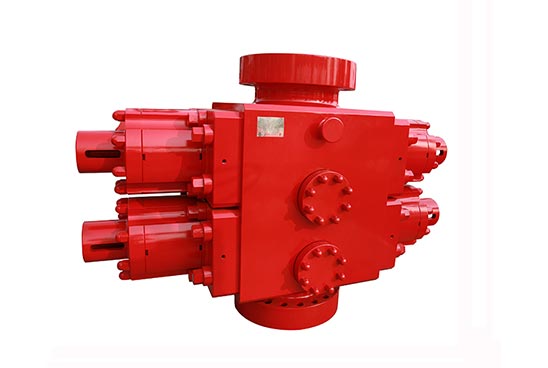

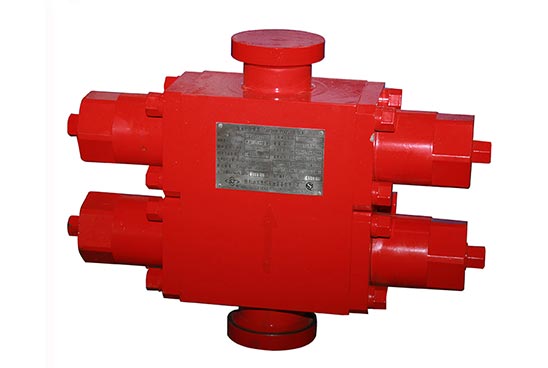

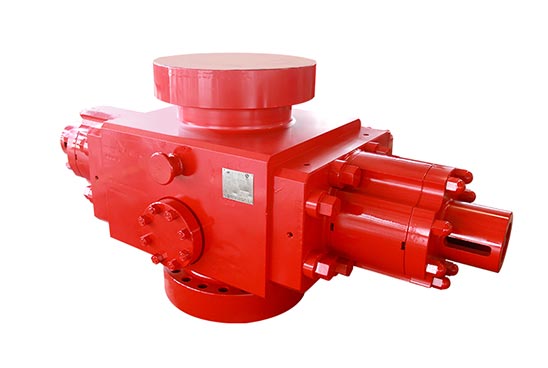

Double Ram BOP
The Shengji hydraulic ram BOP is mainly used in workover and drilling operations with varied technical requirements.

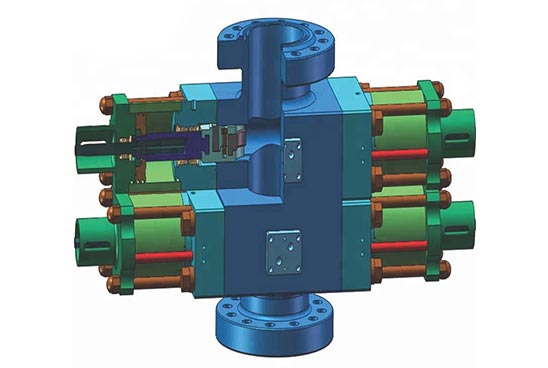

With a BOP body, side outlet, ram body, and other pressure bearing parts crafted from defect-free forged metal, and an oval-shaped inner chamber to reduce stress concentration and improve its sealing performance, this BOP can efficiently prevent an oil well blowout.
The double ram BOP can be equipped with different types of rams, such as pipe ram, blind ram, shear ram or variable diameter ram, to meet different applications. The ram seal is a float type, which will decrease the resistance and abrasion of the rubber core. The service life is greatly prolonged. Its anti-H2S performance conforms to NACE MR 0175 standard.
| Model | 2FZ18-21 | 2FZ18-35 |
| Rated working pressure(psi) | 3000 | 5000 |
| Nominal diameter(in) | 7 1/16 | 7 3/8 |
| Strength pressure test(psi) | 6000 | 7500 |
| Oil cylinder working pressure(psi) | 1200-1500 | 1200-1500 |
| Piston stroke(mm) | 100 | 100 |
| Metal temperature class | -29~121℃ | -29~121℃ |
| Nonmetal temp. class | -18~121℃ | -18~121℃ |
| Oil cylinder closed chamber volume | 2 x 1.75L | 2 x 1.75L |
| Oil cylinder open chamber volume | 2 x 1.50L | 2 x 1.50L |
| Ram closed interval(s) | ＜15 | ＜15 |
| Ram specification | 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram | 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram |
| Bolt quantity and diameter | 12-M30 x 3 x 210 | 12-M36 x 3 x 230 |
| Ring gasket | R45 | R46 |
| Dimension(mm) | 1350 x 380 x 638 | 1350 x 395 x 656 |
| Weight(lb) | 1717 | 1780 |
